ABOUT OUR PLANT
Anglo-Ukrainian Group «IMPERATYV» is integrated manufacturing plants with complete production cycle. Plant No. 1 manufactures GFRP rebar HARDplus® and LIGHTplus®, plant supports and stakes LIGHTgreen®, GFRP rebar LIGHTstem® for greenhouse, thermal insulation anchor TERMOhard®, mine anchor LIGHTbar®. Maximum plant capacity is over 1 000 000 lin.m. of GFRP rebar per month.
WE MANUFACTURE
GFRP rebar LIGHTplus® is traditional glass fiber reinforced polymer rebar with die rolling profile and deformed section. This GFRP rebar type has 83% adhesion to concrete and is applicable for low loads.
GFRP rebar HARDplus® is glass fiber reinforced polymer rebar of new generation, which has 100% adhesion to concrete. Due to high adhesion to concrete the load is distributed evenly over GFRP rebar rod, which allows to withstand significant loads. This GFRP rebar type is applicable for high-loaded structures and is more reliable than traditional GFRP rebar.
Anglo-Ukrainian Group «IMPERATYV» is integrated manufacturing plants with complete production cycle. Plant No. 2 manufactures GFRP meshes HARDmesh® . Maximum plant capacity is over 60 000 sq.m. of GFRP mesh per month.
WE MANUFACTURE
GFRP mesh HARDmesh® is GFRP mesh is advanced alternate and substitution of steel wire mesh. It does not corrode, it is 5 times lighter, it does not conduct heat, it is delivered in coils or rolls, its ultimate tensile strength is twice as high as steel wire mesh.
GFRP rebar LIGHTplus® is conventional alternate and substitute to steel bar
Conventional GFRP rebar! LIGHTplus® is designed for low loads!

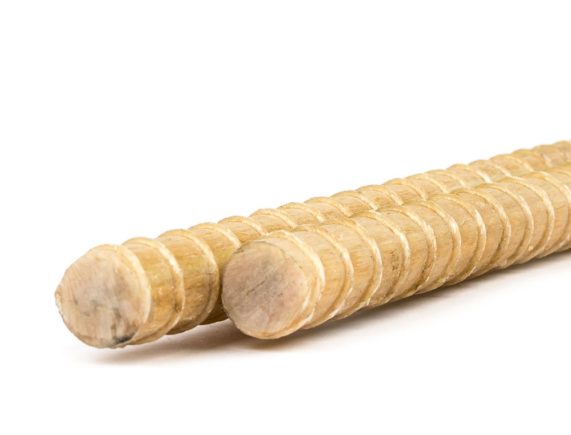

LIGHTplus® GFRP rebar is a conventional type of GFRP rebar based on glass fiber with 83% adhesion to concrete. It is widely applied at low loads and is the very first type of reinforced polymer rebar in the world!
Over 120 000 000 m of LIGHTplus® GFRP rebar have been applied while construction
LIGHTplus® GFRP reinforcement rebar is a non-metallic reinforced polymer bar based on glass fibers, which are impregnated with thermos hardening and thermoplastic polymer binder and are cured. While its manufacture our GFRP rebar is designed with a special rib. These type of GFRP rebar has 83% adhesion to concrete.
SOME OUR PROJECTS
Proven convention and trusted heritage is LIGHTplus GFRP rebar!
LIGHTplus® traditional rebar in the world of composites!
Application
Specifications
Advantages
Object photos
Reference
Documents
Packaging
Delivery
Patents
Private construction
Port construction
Floors in the lower reinforcing nets or meshes
Bridge construction
Tunnel construction
Pool construction
Industrial construction
Airport construction
LIGHTplus® GFRP rebar specification chart
Due to the fact that GFRP rebar is 2-2.5 times stronger at break, GFRP rebar with a smaller diameter can substitute steel bars:
| LIGHTplus GFRP rebar | Steel rebar | Properties | Steel A-III | LIGHTplus GFRP rebar |
|---|---|---|---|---|
| 4 mm | 6 mm | Ultimate tensile strength | 390-490 MPa | 800-1300 MPa |
| 6 mm | 8 mm | Elongation | 25% | 2,2% |
| 7 mm | 10 mm | Modulus of elasticity | 210 000 MPa | 55 000 MPa |
| 8 мм | 12 мм | Thermal conductivity ratio | 46 W/(m0 °C ) | 0,35 W/(m0°C) |
| 10 mm | 14 mm | Linear expansion ration | 13-15 ах-5/°C | 9-12 ах-5/°C |
| 12 mm | 16 mm | Density | 7850 kg/m3 | 1900 kg/m3 |
| 14 mm | 18 mm | Electrical conductivity | highly conductive | non-conductive |
| 16 mm | 20 mm | Resistance to aggressive environment | corrosible and low resistant | corrosion and acid resistant |
NON-CORROSIVE
COST EFFECTIVE
INCREASED LIFETIME
TWICE STRONGER than steel bars
CONDUCTS NO HEAT
5 TIMES LIGHTER than steel bars
TRANSPORTATION IN COILS OR ROLLS
RADIOWAVE TRANSPARENT
CONDUCTS NO ELECTRICITY
NON-MAGNETIZABLE
83% ADHESION TO CONCRETE
EASY LAYING
Object photos
Cottage village, Kyiv region
Cottage village, Kyiv region
Cottage village, Kyiv region
Cottage village, Kyiv region
Farm building, Kharkiv region
Farm building, Kharkiv region
Farm building, Kharkiv region
Farm building, Kharkiv region
Industrial building, Kozyn
Industrial building, Kozyn
Industrial building, Kozyn
Industrial building, Kozyn
Cottage village, Kyiv region
Farm building, Kharkiv region
Kerb designing in the park, Vinnytsia region
Private house - 1-storey house, Kyiv region
Reference on LIGHTplus® GFRP rebar application
Отзыв от ООО “Гал-Экспоторг”
Отзыв от ООО “Минтекс”
Отзыв от ООО “ВБК”
Отзыв от ООО “МУР”
Documents on LIGHTplus® GFRP rebar
LIGHTplus® GFRP rebar patent
Certificate of сonformity
SES Certificate
Exhibition сertificate
| GFRP rebar diameter | Total quantity in a coil/roll | Coil/roll diameter | Coil/roll weight |
|---|---|---|---|
| 4 mm | 100-200 m | 0,80 m | up to 5 kg |
| 6 mm | 50-200 m | 0,80 – 1,00 m | up to 10 kg |
| 7 mm | 50-200 m | 1,00 – 1,20 m | up to 12 kg |
| 8 mm | 50-200 m | 1,00 – 1,50 m | up to 15 kg |
| 10 mm | 50-100 m | 1,25 – 1,75 m | up to 20 kg |
| 12 mm | 50-100 m | 1,75 m | up to 25 kg |
| 14 mm | 6-12 m | in bars | |
| 16 mm | 6-12 m | in bars |
GFRP rebar delivery
In order to deliver 2 km of steel bars you will need special-purpose equipment, and in order to conduct loading and unloading you will need pretty much time and workers. More over, the cost of all these operations will be quite price.
In order to deliver 2 km of LIGHTplus® GFRP rebar you will just need a car. Due to the fact that GFRP rebar can be delivered in coils/rolls and its weight is about 10 times lower than of steel bars, loading and unloading operations will take just about 15 minutes and 1 worker.
Patents for HARDplus® and LIGHTplus® GFRP rebar, HARDmesh® GFRP mesh
HARDmesh GFRP mesh
LIGHTplus® GFRP rebar
HARDplus® GFRP rebar
Difference of GFRP rebar LIGHTplus® from composite rebar HARDplus® :
GFRP rebar with sand coating HARDplus®
GFRP rebar LIGHTplus
Since conventional composite rebar is slidable and has 83% adhesion to concrete, its application is limited and suitable for constructions with low loads only. Composite rebar with sand coating HARDplus® has no such disadvantages, which makes it twice more reliable!
Video: Helpful information
Video: GFRP rebar instruction
GFRP rebar LIGHTplus® is the traditional solution for your foundation!
NON-CORROSIVE
COST EFFECTIVE
INCREASED LIFETIME
TWICE STRONGER than steel bars
"">
CONDUCTS NO HEAT
5 TIMES LIGHTER than steel bars
TRANSPORTATION IN COILS OR ROLLS
RADIOWAVE TRANSPARENT
CONDUCTS NO ELECTRICITY
NON-MAGNETIZABLE
83% ADHESION TO CONCRETE
EASY LAYING
