ABOUT OUR PLANT
Anglo-Ukrainian Group «IMPERATYV» is integrated manufacturing plants with complete production cycle. Plant No. 1 manufactures GFRP rebar HARDplus® and LIGHTplus®, plant supports and stakes LIGHTgreen®, GFRP rebar LIGHTstem® for greenhouse, thermal insulation anchor TERMOhard®, mine anchor LIGHTbar®. Maximum plant capacity is over 1 000 000 lin.m. of GFRP rebar per month.
WE MANUFACTURE
GFRP rebar LIGHTplus® is traditional glass fiber reinforced polymer rebar with die rolling profile and deformed section. This GFRP rebar type has 83% adhesion to concrete and is applicable for low loads.
GFRP rebar HARDplus® is glass fiber reinforced polymer rebar of new generation, which has 100% adhesion to concrete. Due to high adhesion to concrete the load is distributed evenly over GFRP rebar rod, which allows to withstand significant loads. This GFRP rebar type is applicable for high-loaded structures and is more reliable than traditional GFRP rebar.
Anglo-Ukrainian Group «IMPERATYV» is integrated manufacturing plants with complete production cycle. Plant No. 2 manufactures GFRP meshes HARDmesh® . Maximum plant capacity is over 60 000 sq.m. of GFRP mesh per month.
WE MANUFACTURE

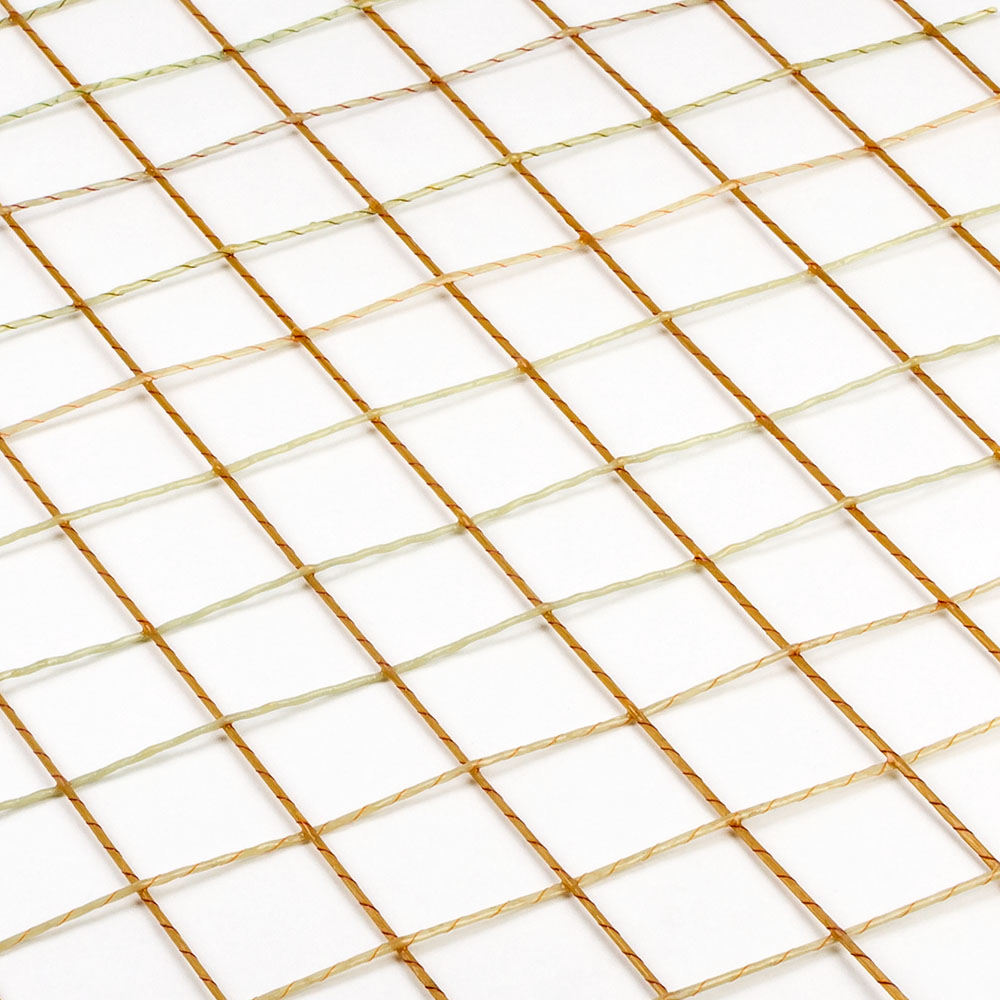

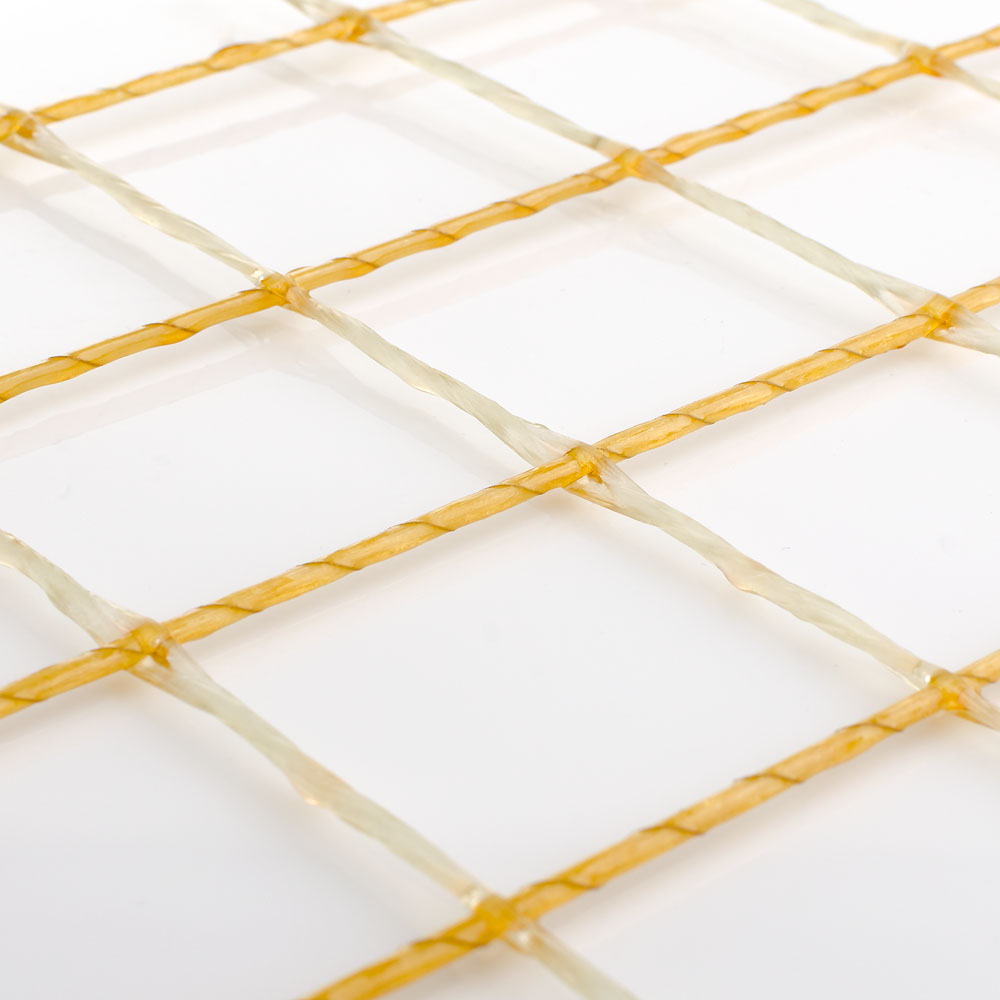

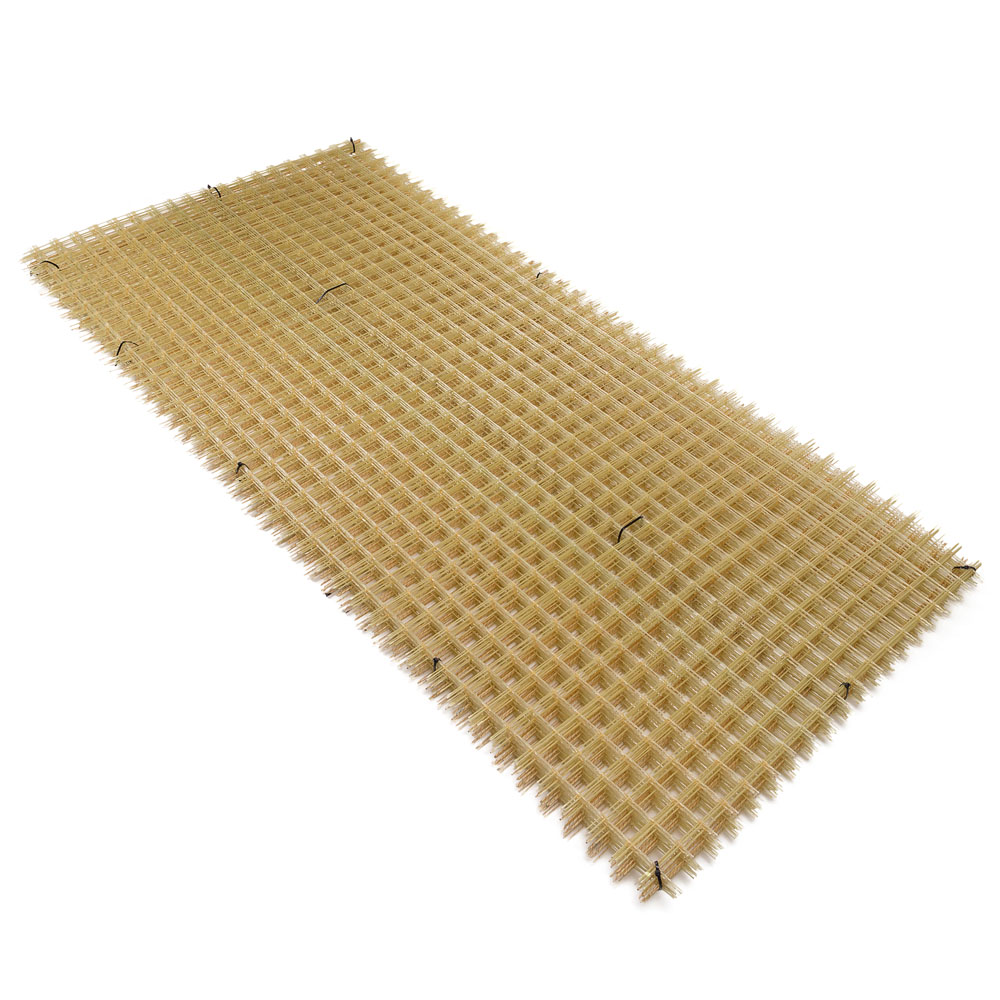

GFRP mesh HARDmesh® is GFRP mesh is advanced alternate and substitution of steel wire mesh. It does not corrode, it is 5 times lighter, it does not conduct heat, it is delivered in coils or rolls, its ultimate tensile strength is twice as high as steel wire mesh.
GFRP mesh HARDmesh® is innovative alternate and substitute to steel wire mesh
It is a perfect material for brick laying! HARDmesh® is non-corrosive coilmesh!
HARDmesh® GFRP mesh is a composite polymer mesh based on glass fiber and used for reinforcement in concrete. HARDmesh® can substitute steel wire mesh!
Over 1 270 000 sqm/per year of HARDmesh® GFRP mesh have been applied while construction
HARDmesh® is a fiberglass mesh made from glass fiber and polymer. It replaces steel wire mesh, is non-corrosive, 5 times lighter than steel, 2 times stronger than steel, and does not conduct heat.
Available sizes:
✔ 50x50 mm, 100x100 mm, 150x150 mm, 200x200 mm
✔ Diameter range: 2-8 mm
GFRP mesh with a smaller diameter can replace steel wire mesh!
HARDmesh® GFRP Mesh has demonstrated high efficiency in plaster reinforcement for industrial and warehouse premises.
Thanks to its low thermal conductivity, which is 100 times lower than steel, building heating costs are significantly reduced!
SOME OUR PROJECTS
Reliability is HARDmesh® GFRP mesh!
HARDmesh® GFRP mesh
Application
Specifications
Advantages
Object photos
Reference
Documents
Packaging
Delivery
Patents
High-loaded foundation casting or filling
Port construction
In laying brick
Private construction
Tunnel construction
Pool construction
Industrial construction
Airport construction
Bridge construction
HARDmesh® GFRP mesh specification chart
Due to the fact that HADRmesh® is 2-2.5 times stronger at break, HADRmesh® with a smaller diameter can substitute steel bars:
| GFRP HARDmesh® | Steel wire mesh | Properties | Steel wire mesh | GFRP HARDmesh® |
|---|---|---|---|---|
| 2 mm | 3 mm | ultimate tensile strength | 550-570 МPа | 800-1300 МPа |
| 3 mm | 5 mm | width | 0,38 – 1 m | 0,38 – 1,2 m |
| 4 mm | 6 mm | bar breaking strength | 400-720 kgf | 600-950 kgf |
| thermal conductivity ratio | 56 W/(m0°C) | 0.35 W/(m0°C) | ||
| linear expansion ration | 13-15 ах-5//°C | 9-12 ах-5//°C | ||
| square unit weight | 2220 kg/m3 | 360 kg/m3 | ||
| electrical conductivity | highly conductive | non-conductive | ||
| resistance to aggressive environment | corrosible and low resistant | corrosion and acid resistant |
NON-CORROSIVE
COST EFFECTIVE
INCREASED LIFETIME
TWICE STRONGER than steel bars
CONDUCTS NO HEAT
9 TIMES LIGHTER than steel bars
TRANSPORTATION IN COILS OR ROLLS
RADIOWAVE TRANSPARENT
CONDUCTS NO ELECTRICITY
NON-MAGNETIZABLE
IDEAL FOR BRICK LAYING
EASY LAYING
Feedback on cooperation with the plant
Отзыв от ООО “Гал-Экспоторг”
Отзыв от ООО “Минтекс”
Отзыв от ООО “ВБК”
Отзыв от ООО “МУР”
Documents on GFRP HARDmesh®
Patent HARDmesh®
Certificate of сonformity
SES Certificate
Certificate of сonformity

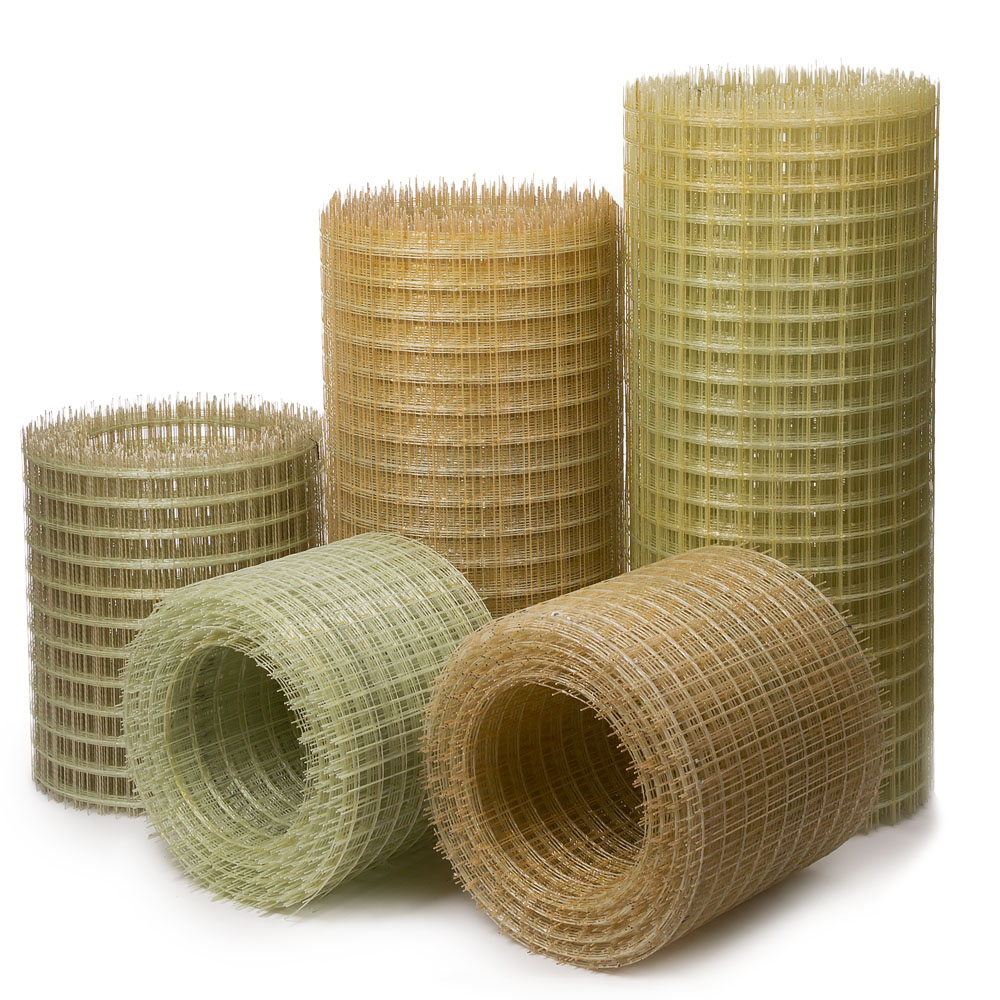

| Diameter mesh | Total quantity in a coil/roll | Coil/roll diameter | Coil/roll weight |
|---|---|---|---|
| 2 mm | 60 m2 | 0,65 m | до 15 kg |
| 3 mm | 60 m2 | 0,65 m | до 25 kg |
| 4 mm | 60 m2 | 0,70 m | до 32 kg |
GFRP mesh HARDmesh® delivery
Since steel wire mesh is delivered in sheets and has much weight, then a truck or lorry with high loading capacity will be required for transportation, it will also require several loaders or handlers if the purpose is to load and unload quickly.
At the same time, GFRP mesh HARDmesh® delivery will require just a car with low loading capacity, since GFRP mesh weight is 9 times lower than of steel wire mesh! It will also require 1 person for fast loading and unloading, as GFRP mesh is delivered in coils and such a coil of 60 sq. m. can be easily lifted even by a child. As a result, delivery turns out to be significantly cost effective and easy!
Patents for HARDplus® and LIGHTplus® GFRP rebar, HARDmesh® GFRP mesh
GFRP mesh HARDmesh®
Rebar LIGHTplus®
Rebar HARDplus
HARDmesh GFRP mesh with sand coating is 2 times safer and more reliable! Moreover, it is corrosion resistant, conducts no heat, it is 5 times lighter, delivered in coils, it is radio transparent, more cost effective, it has the same expansion module as concrete, conducts no electricity, it is much stronger at break.
Difference of GFRP HARDmesh® from composite mesh LIGHTmesh®
GFRP HARDmesh
GFRP LIGHTmesh
HARDmesh® GFRP Mesh is specially designed for humid environments and can withstand high loads. Providing superior durability and performance!
Video: Helpful information
Video: GFRP mesh instruction
