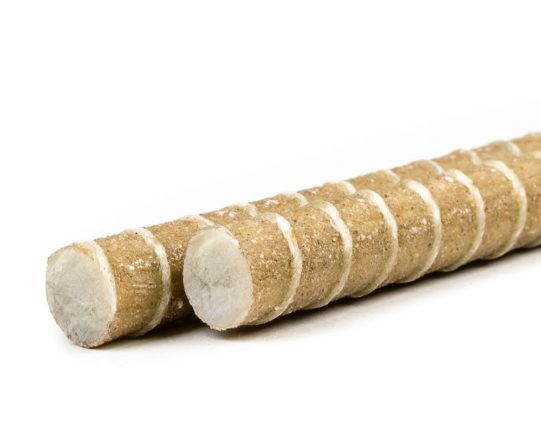

GFRP rebar HARDplus® for construction

GFRP rebar HARDplus® is innovative alternate and substitute to steel bar

100% adhesion to concrete! HARDplus® is designed for high loads!

Does not rust

Cheaper than steel

Increases building life by 3 times

NON-CORROSIVE, COST EFFECTIVE, INCREASED LIFETIME!

HARDplus® FRP rebar is a non-metallic reinforcement made from glass or basalt fibers combined with a polymer binder. It is twice as strong as steel, does not corrode, does not conduct heat, and is 43% more cost-effective.

For better adhesion to concrete, the rebar is coated with sand or special-purpose ribs. Ideal for construction, it ensures durability, strength, and long-term savings.

Our Projects

SOME OUR PROJECTS

Centered YouTube Video

Text Styling

It is widely applied worldwide in over 19 countries, join the leading future!

Rebar HARDplus® with sand coating is leading power in the world of composites!

High-loaded foundation casting or filling

Port construction

Floors in the lower reinforcing nets or meshes

Private construction

Tunnel construction

Pool construction

Industrial construction

Airport construction

Bridge construction

GFRP rebar HARDplus® specification chart

Due to the fact that GFRP rebar is 2-2.5 times stronger at break, GFRP rebar with a smaller diameter can substitute steel bars:

HARDplus® GFRP rebar	Steel rebar	Properties	Steel A-III	HARDplus® GFRP rebar
4 mm	6 mm	Ultimate tensile strength	390-490 MPa	800-1300 MPa
6 mm	8 mm	Elongation	25%	2,2%
7 mm	10 mm	Modulus of elasticity	210 000 MPa	55 000 MPa
8 мм	12 мм	Thermal conductivity ratio	46 W/(m0 °C )	0,35 W/(m0°C)
10 mm	14 mm	Linear expansion ration	13-15 ах-5/°C	9-12 ах-5/°C
12 mm	16 mm	Density	7850 kg/m3	1900 kg/m3
14 mm	18 mm	Electrical conductivity	highly conductive	non-conductive
16 mm	20 mm	Resistance to aggressive environment	corrosible and low resistant	corrosion and acid resistant

NON-CORROSIVE

COST EFFECTIVE

INCREASED LIFETIME

TWICE STRONGER than steel bars

CONDUCTS NO HEAT

5 TIMES LIGHTER than steel bars

TRANSPORTATION IN COILS OR ROLLS

RADIOWAVE TRANSPARENT

CONDUCTS NO ELECTRICITY

NON-MAGNETIZABLE

100% ADHESION TO CONCRETE

EASY LAYING

Object photos

Silo pit, Kyiv region

Wastewater treatment facilities

Industrial building, Kozyn

Reference on HARDplus® GFRP rebar with sand coating application

Отзыв от ООО “Гал-Экспоторг”

Отзыв от ООО “Минтекс”

Отзыв от ООО “ВБК”

Отзыв от ООО “МУР”

Documents on HARDplus® GFRP rebar

HARDplus® GFRP rebar patent

Certificate of сonformity - DSTU

SES Certificate

Certificate of сonformity - TU

GFRP rebar diameter	Total quantity in a coil/roll	Coil/roll diameter	Coil/roll weight
4 mm	100-200 m	0,80 m	up to 5 kg
6 mm	50-200 m	0,80 – 1,00 m	up to 10 kg
7 mm	50-200 m	1,00 – 1,20 m	up to 12 kg
8 mm	50-200 m	1,00 – 1,50 m	up to 15 kg
10 mm	50-100 m	1,25 – 1,75 m	up to 20 kg
12 mm	50-100 m	1,75 m	up to 25 kg
14 mm	6-12 m	in bars
16 mm	6-12 m	in bars

GFRP rebar delivery

In order to deliver 2 km of steel bars you will need special-purpose equipment, and in order to conduct loading and unloading you will need pretty much time and workers. More over, the cost of all these operations will be quite price.

In order to deliver 2 km of HARDplus® GFRP rebar you will just need a car. Due to the fact that GFRP rebar can be delivered in coils/rolls and its weight is about 10 times lower than of steel bars, loading and unloading operations will take just about 15 minutes and 1 worker.

Patents for HARDplus® and LIGHTplus® GFRP rebar, HARDmesh® GFRP mesh

HARDmesh® GFRP mesh

LIGHTplus® GFRP rebar

HARDplus® GFRP rebar

Difference of GFRP rebar HARDplus® from conventional composite rebar:

GFRP rebar with sand coating HARDplus®

GFRP rebar LIGHTplus®

Since conventional composite rebar is slidable and has 83% adhesion to concrete, its application is limited and suitable for constructions with low loads only. Composite rebar with sand coating HARDplus® has no such disadvantages, which makes it twice more reliable!
